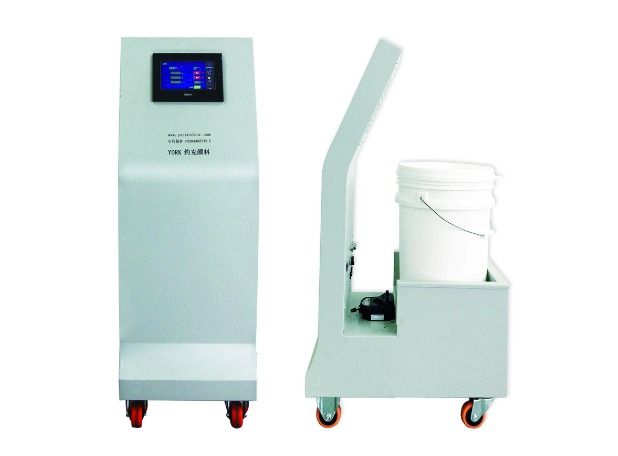

By measuring the compression and expansion of the pump chamber to quantitatively add the liquid colorant.
✔CTS5000-YKPP Suitable for frequent color changes
✔CTS5000-GB Suitable for long-term single-color addition
| CTS5000-YKPP | CTS5000-GB | |
| Metering Pump | Plastic Pump | Steel Pump |
| 功率W | 300 | 400 |
| 电源V | 220 | 220 |
| 外形尺寸mm | 600*400*1150 | 600*400*1150 |
| 重量KG | 30 | 33 |
Equipped with an electronic weighing sensor,it automatically corrects the dosage added.
✔Real-time online tracking,proactive correction,precise addition
✔Multifunctional alarm
✔Production statistics function

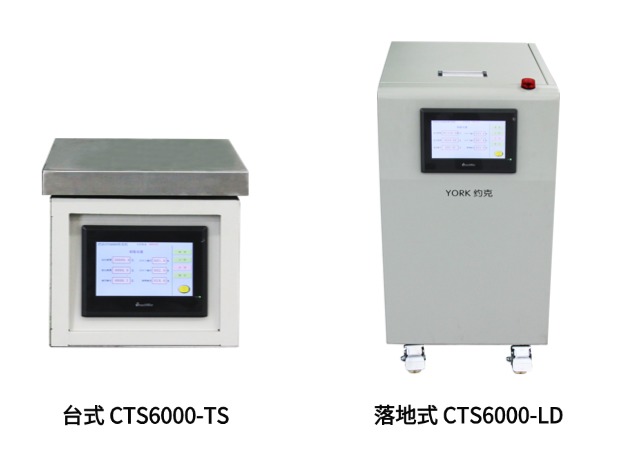

| CTS6000-TS | CTS6000-LD | |
| Device type | Desktop | Floor-mounted |
| Weighing capacity (KG) | 40 | 40 |
| Power(W) | 300 | 300 |
| Voltage(V) | 220 | 220 |
| Overall Dimensions(mm) | 380*320*250 | 500*600*700 |
| Weight(KG) | 30 | 50 |
The resin valve is mounted between the hopper and pre-mixer to precisely dose plastic resin.With each operational cycle,it quantitatively transfers material from the glass container into the pre-mixing chamber.
Product dimensions :230X550X190mm
Air pressure:3-4 kilograms
The pre-mixer is installed between the hopper and feed throat,where high-speed mixing enables thorough and uniform blending of liquid colorant with plastic resins.This pretreatment method provides superior material preparation for subsequent plastic processing.Compared to traditional masterbatch,it achieves better dispersion uniformity while preventing vibration-induced separation between colorants and resin pellets,thereby ensuring consistent color stability.
| PM-1 | PM-2 | PM-5 | PM-10 | |
| 容纳PP公斤 | 1.0 | 1.3 | 2.8 | 5.3 |
| 功率W | 250 | 250 | 750 | 750 |
| 电源V | 220 | 220 | 380 | 380 |
| 外形尺寸mm | 380*320*230 | 360*360*270 | 500*480*270 | 500*500*320 |
| 重量KG | 24 | 41 | 41 |
34 |
The frame baseplate secures the pre-mixer between its upper and lower support plates,facilitating easy installation and removal of the unit.When the premixer is not required,accessory straight tubes can connect the support plates to maintain uninterrupted polymer folw.
| PM-1-DZ | PM-2-DZ | PM-5-DZ | PM-10-DZ | |
| 外形尺寸mm | 200*300*260 | 250*280*200 | 245*300*275 | 270*330*330 |
| 重量KG | 19 | 18 | 20 | 25 |
